Weld Steel Pipe Polishing Machine With Sand Belt
- Technical Data
- Weld Steel Pipe Polishing Machine With Sand Belt
- Model: WSPR-1-100S
- Capacity of diameter: 3-100mm
- Capacity oflength: 1-3000mm
- Station number:One
- Feeding speed:1-6m/min(adjustable)
- Wheel motor:4kw
- Feeding motor:4kw
- Total power:4kw
- Voltage:single-phase / three-phase
- Standard with 10sets polishing sand belt
- Gross weight:220kgs
- Dimension:950x950x1100mm (wooden crate size)

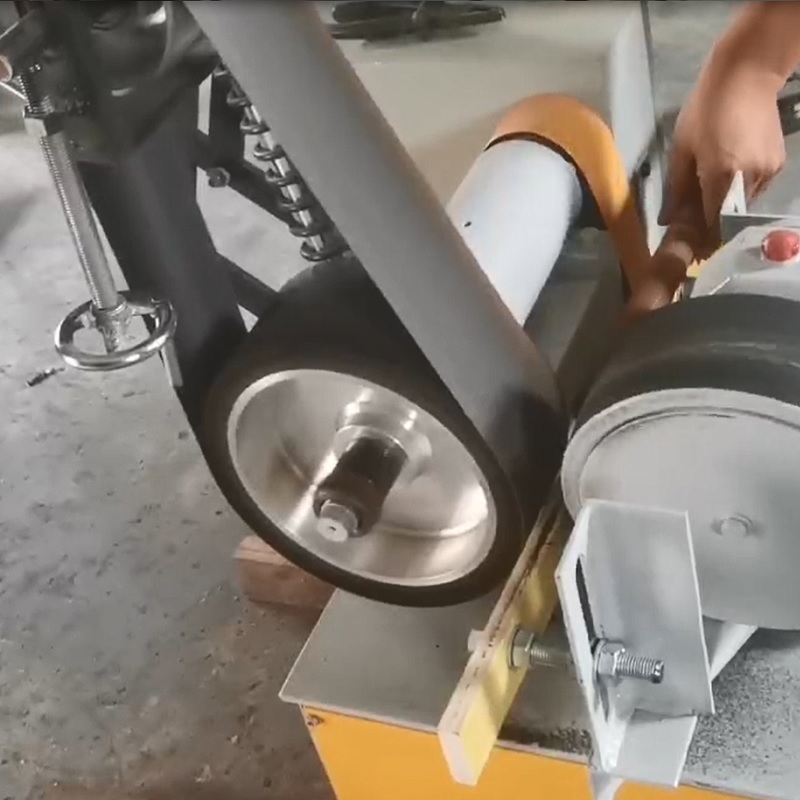

- Machine equipped with aluminum wheel frame with sand belt

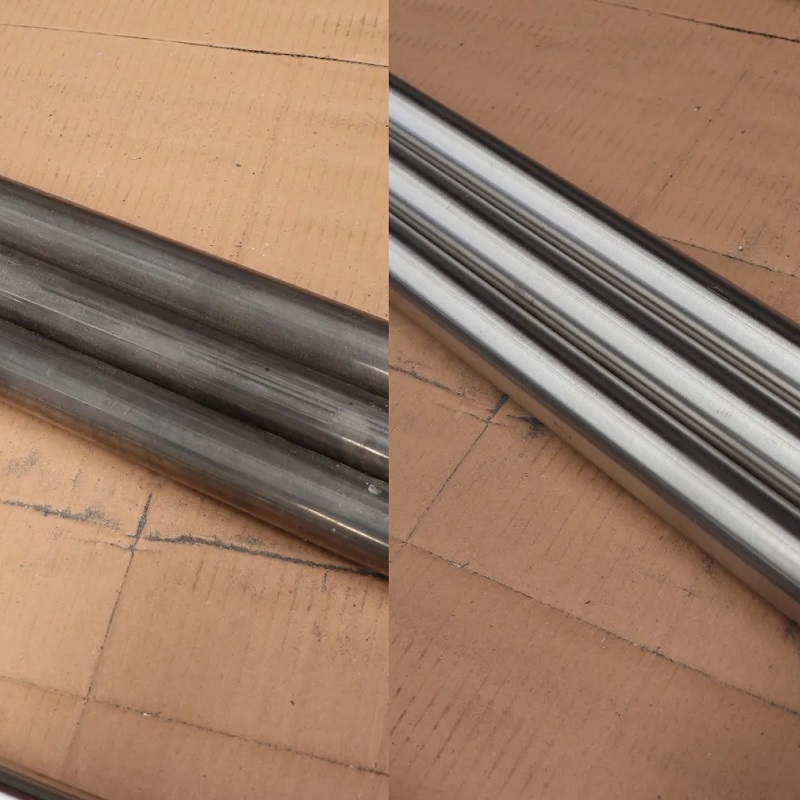

Weld Steel Pipe Polishing Machine With Sand Belt is different from a abrasive wheel polishing machine. It adopts sand belt as polishing tool, the sand belts are mounted on an aluminum wheel frame. This is suitable for removing the embossed part on a welded pipe and welding tube. It will turn the weld joint of two metal tubes to a flat surface.
APPLICATION
Weld Steel Pipe Polishing Machine With Sand Belt work for below applications.
- Welding stainless steel tube polishing
- TIG welding steel pipe grinding
- Welded metal tubing polish
- Weld tube junction polishing
- Pipe weld scar removing
PRODUCT SPECIFICATION
| Content | Data | Content | Data | ||||
| Working capacity | 3-100mm diameter | Wheel motor | 4kw | ||||
| Working capacity | Length 1mm-3000mm | Feeding motor | 0.4kw | ||||
| Station no. | One Station | Voltage | single-phase / 3-phase | ||||
| Feeding speed | 1-6m/min(adjustable) | Gross weight | 220kgs | ||||
| Abrasive wheel speed | 2800rpm | Dimension | 950*950*1100mm |
FAQ
- What is the difference between single-station machine and multi-station polishing machine?
- Single-head machine means there is only single one polishing wheel while for multi-head machine there is several working position with different material of polishing
- If the budget is limited, can I just purchase a single-station machine and changepolishing wheels to get similar function as a multi-head machine?
- Yes, this is possible, if you polish small quantity pipes, you can first put on a rough polishing wheels on single-head machine and after all pipes are done for first time polishing, change to another fine polishing wheel and repeat.
- What kind of grinding wheel do we use on our machine?
- We have nylon wheel, sand wheel, fiber wheel, cloth wheel and wire brush wheel for various applications.
- What is the life span of the abrasive wheel?
- 3500meters rodpolishing each.
- Do you have machine in stock?
- Yes, we have ready stock for regular machines, but if your voltage are different from what in China we will need 7-10days to customize motor for you.
