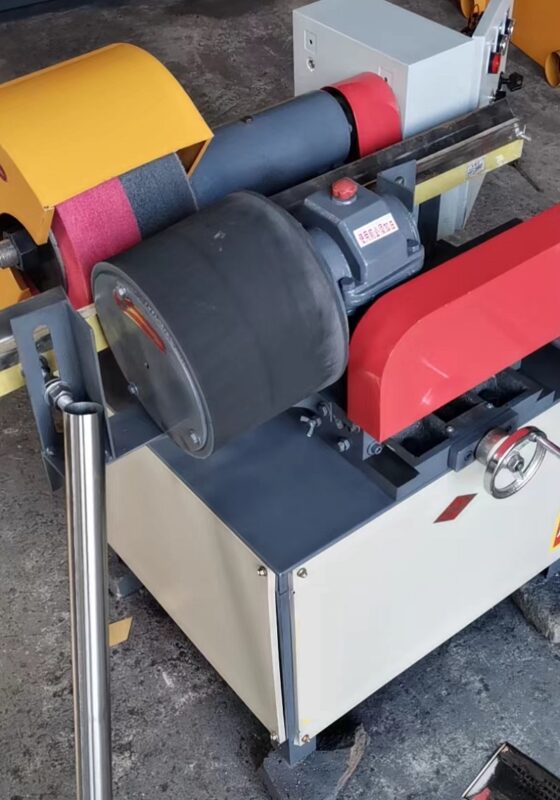

Widen Abrasive Wheel Pipe Polishing Machine
- Technical Details
- Pipe polishing machine with extended grinding wheel (Longer abrasive wheel version)
- Model no.: WSPR-1-100L
- Working capacity (min.and max.diameter) : 3-100mm
- Working capacity (min.and max.pipe length): 1-3000mm
- Station no.:1
- Feeding speed:1-6m/min(adjustable, stepless speed adjusting)
- Abrasive wheel speed:2800rpm
- Abrasive wheel size:Dia250xthickness customized,hole32mm
- Wheel motor:4kw
- Feeding motor:0.4kw
- Total power:4.4kw
- Consumption:9A
- Voltage:single-phase / 3-phase customized
- Standard with 1 set grinding wheel
- Gross weight:220kgs
- Dimension:950x950x1100 (wooden case size)

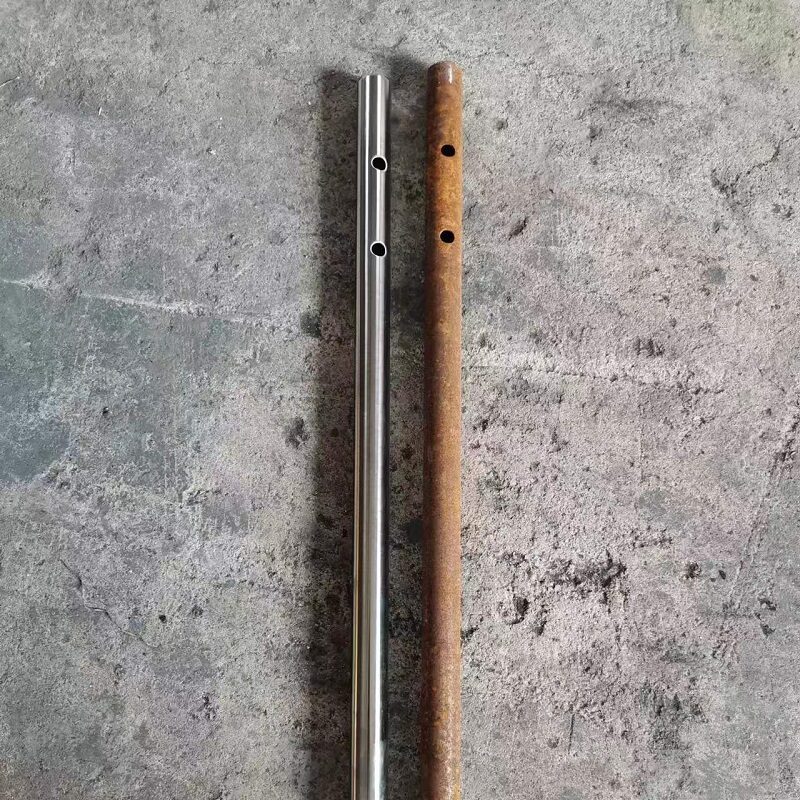

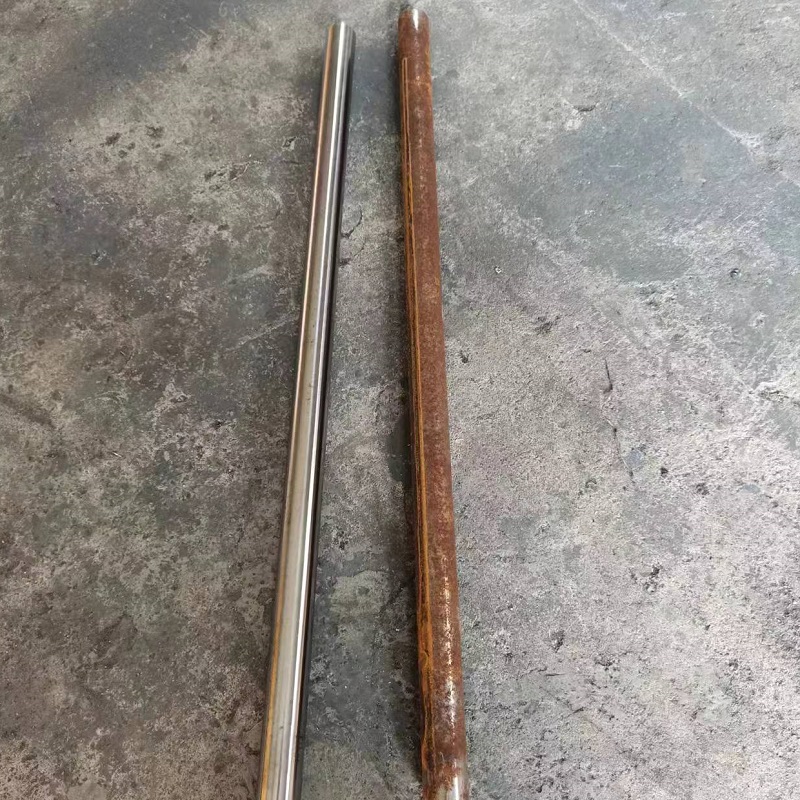

The widen abrasive wheel pipe polishing machine can be equipped with various polishing wheels to create different drawing effects, widely used in polishing of stainless steel, steel non-ferrous metals, plastic, and wood on the grinding, polishing, fine polishing. It has a wide wheel than usual, such as 16cm which is double than the usual one 8cm width, so that you can polish well and get better finish for your pipes.
PRODUCT SPECIFICATION
- Pipe polishing machine with extended grinding wheel (Longer abrasive wheel version)
- Model no.: WSPR-1-100L
- Working capacity (min.and max.diameter) : 3-100mm
- Working capacity (min.and max.pipe length): 1-3000mm
- Station no.:1
- Feeding speed:1-6m/min(adjustable, stepless speed adjusting)
- Abrasive wheel speed:2800rpm
- Abrasive wheel size:Dia250xthickness customized,hole32mm
- Wheel motor:4kw
- Feeding motor:0.4kw
- Total power:4.4kw
- Consumption:9A
- Voltage:single-phase / 3-phase customized
- Standard with 1 set grinding wheel
- Gross weight:220kgs
- Dimension:950x950x1100 (wooden case size)
| Content | Data | Content | Data | ||||
| Working capacity | Diameter 3-100mm | Wheel motor | 4kw | ||||
| Working capacity | Length 1mm-3000mm | Feeding motor | 0.4kw | ||||
| Station no. | 1 Station | Voltage | single-phase / 3-phase | ||||
| Feeding speed | 1-6m/min(adjustable) | Gross weight | 220kgs | ||||
| Abrasive wheel speed | 2800rpm | Dimension | 950*950*1100mm |
